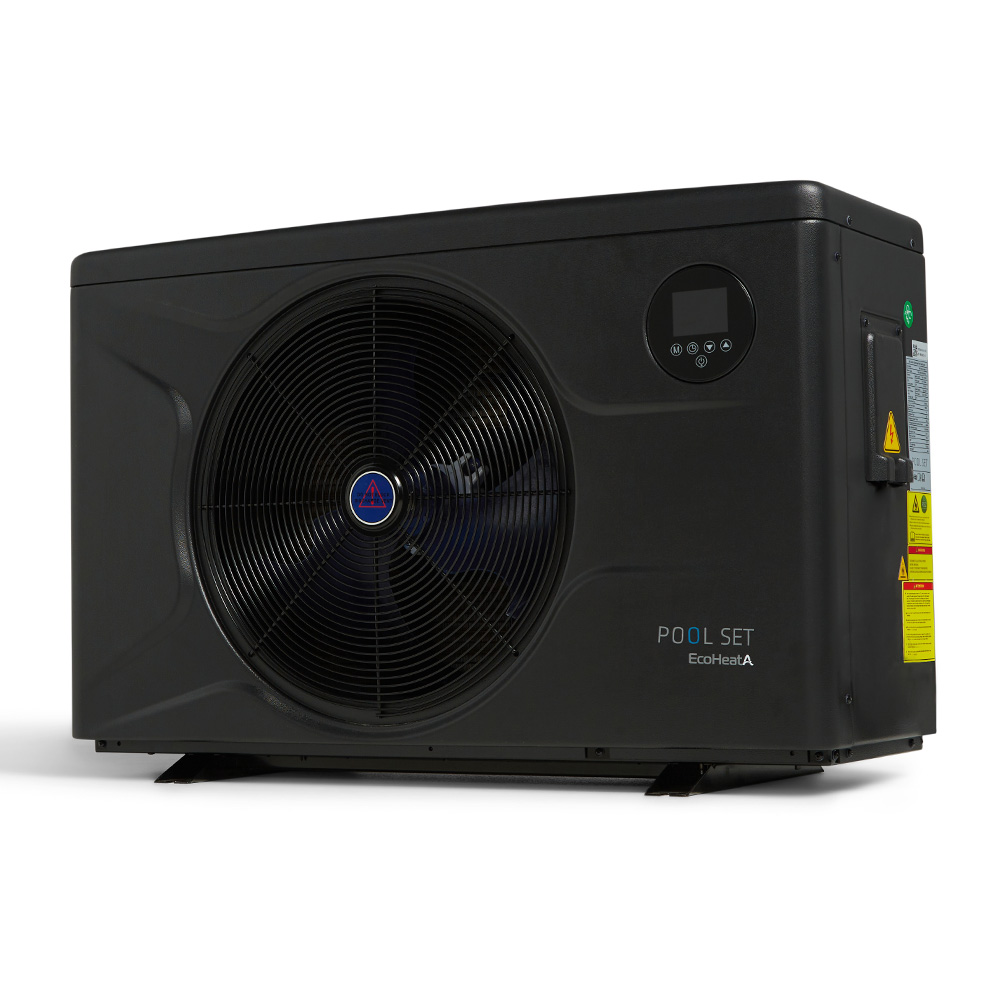

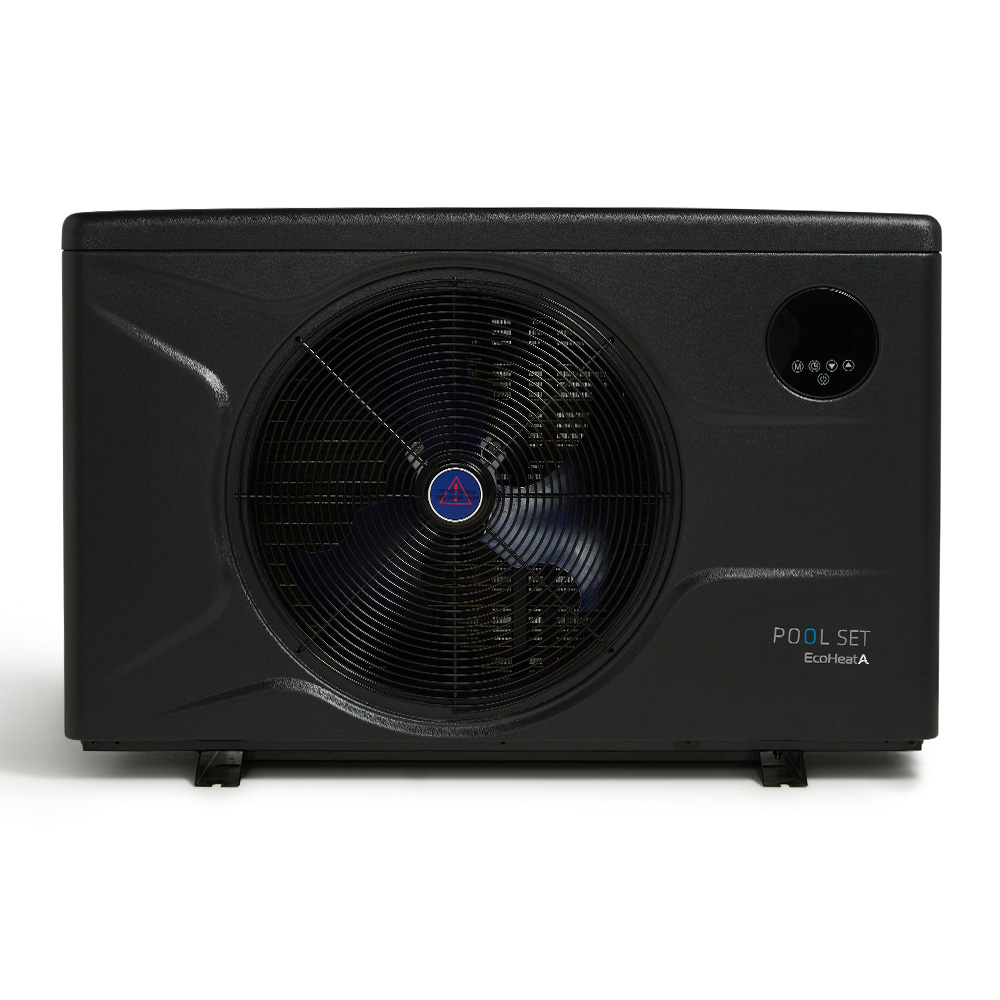

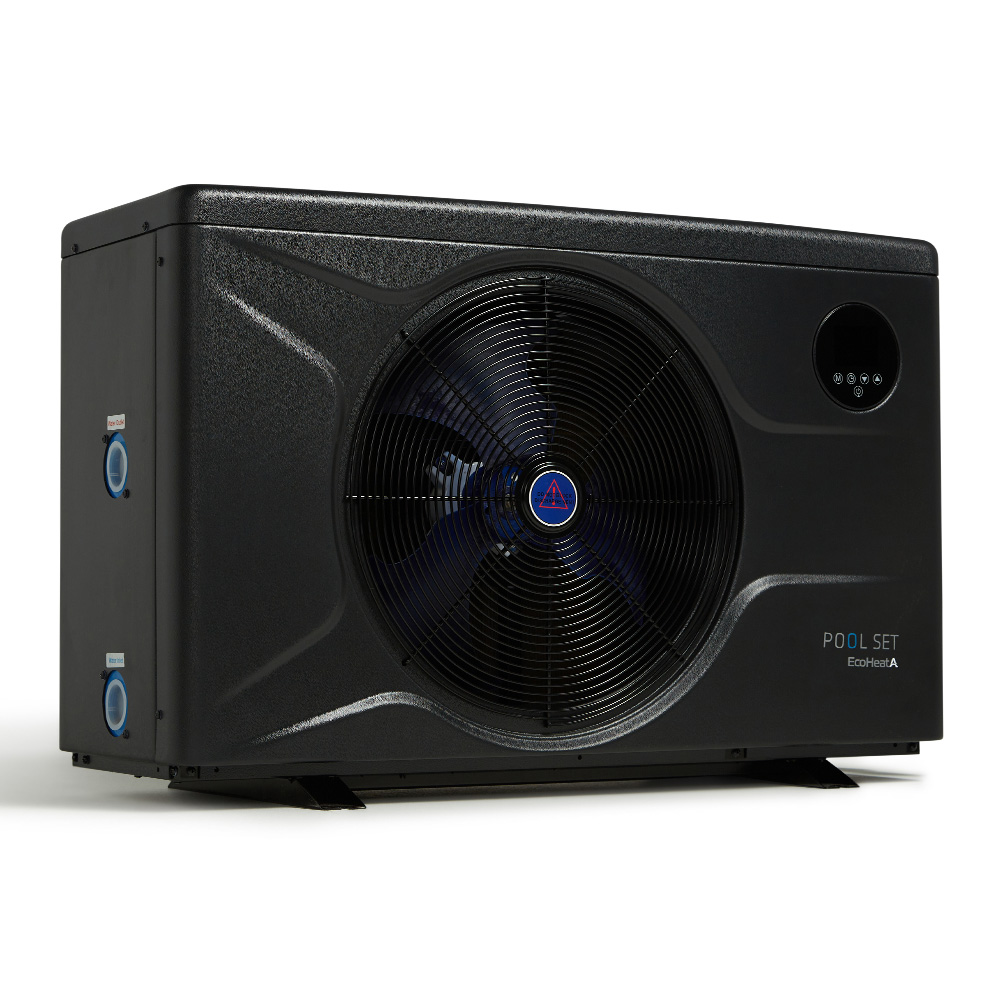

Pool Set EcoHeata 14kW Pool Heat Pump
The Pool Set EcoHeata heat pump is the ideal choice for pool and spa owners looking to extend their swimming season with minimal running costs. Designed with the latest technology including full inverter compressors, fans and wifi control. These units are whisper quiet and have a robust ABS construction that is designed to withstand the tough Australian conditions.
- COP coefficient of performance as high as 15.0
- New generation R32 refrigerant to better protect the environment
- Heating and cooling functionality
- Ultra silent at 40 decibels
- Titanium heat exchanger
- Panasonic compressor
- Wide working temperature range -7 to 45 degrees celsius

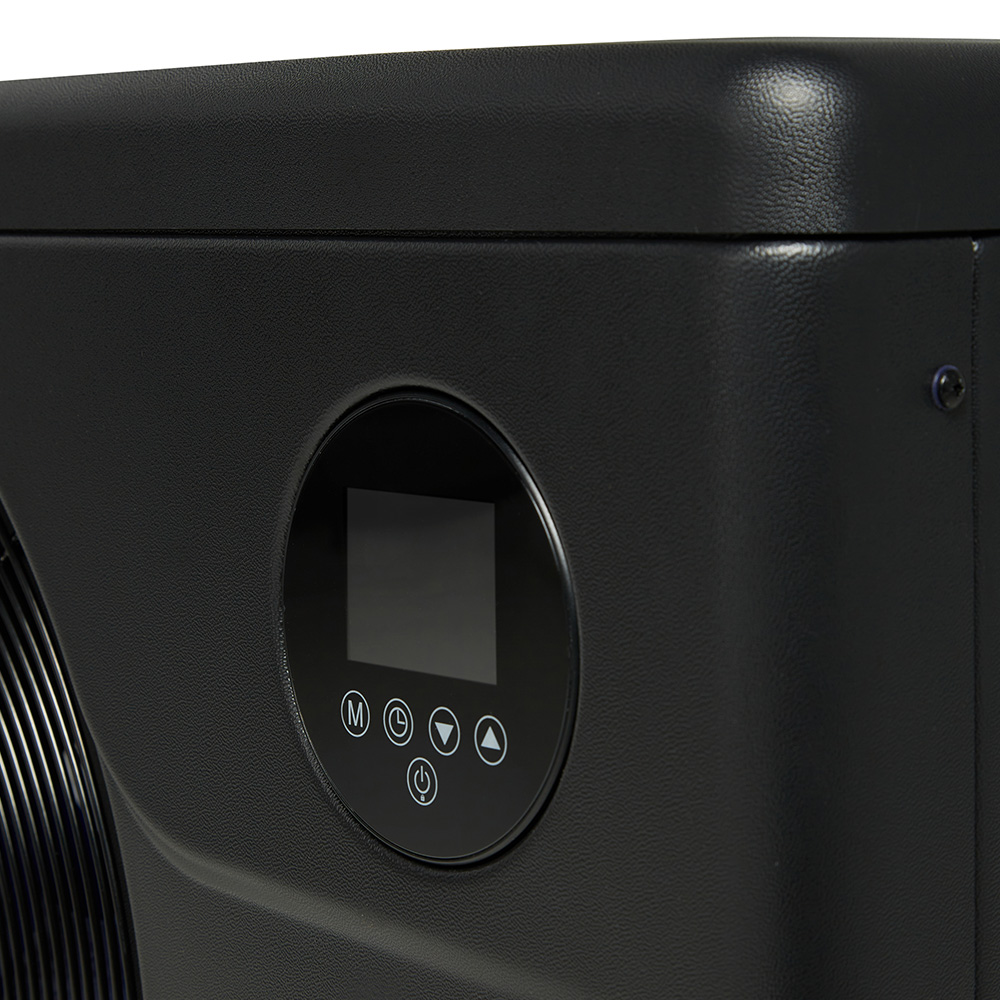

- Easy to use touch screen LCD control panel
- WiFi connected and smart phone app
- Super durable ABS shell construction

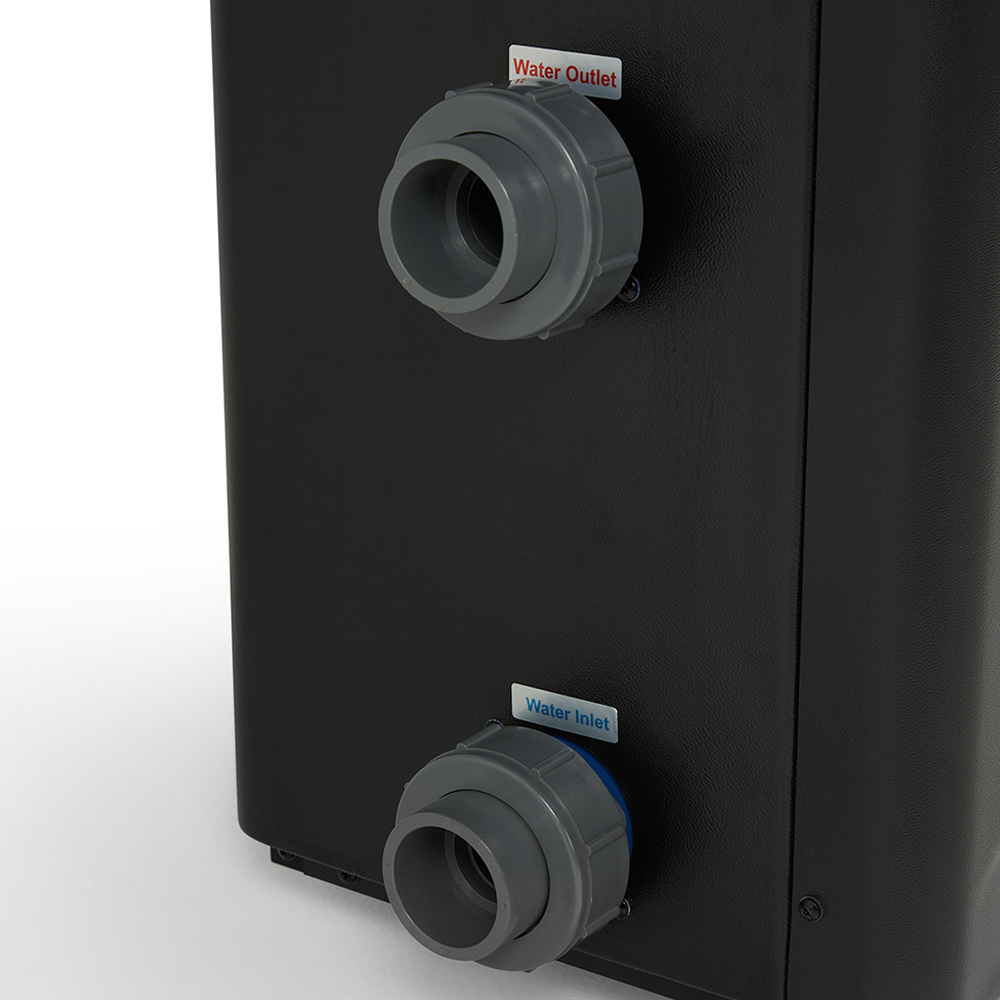

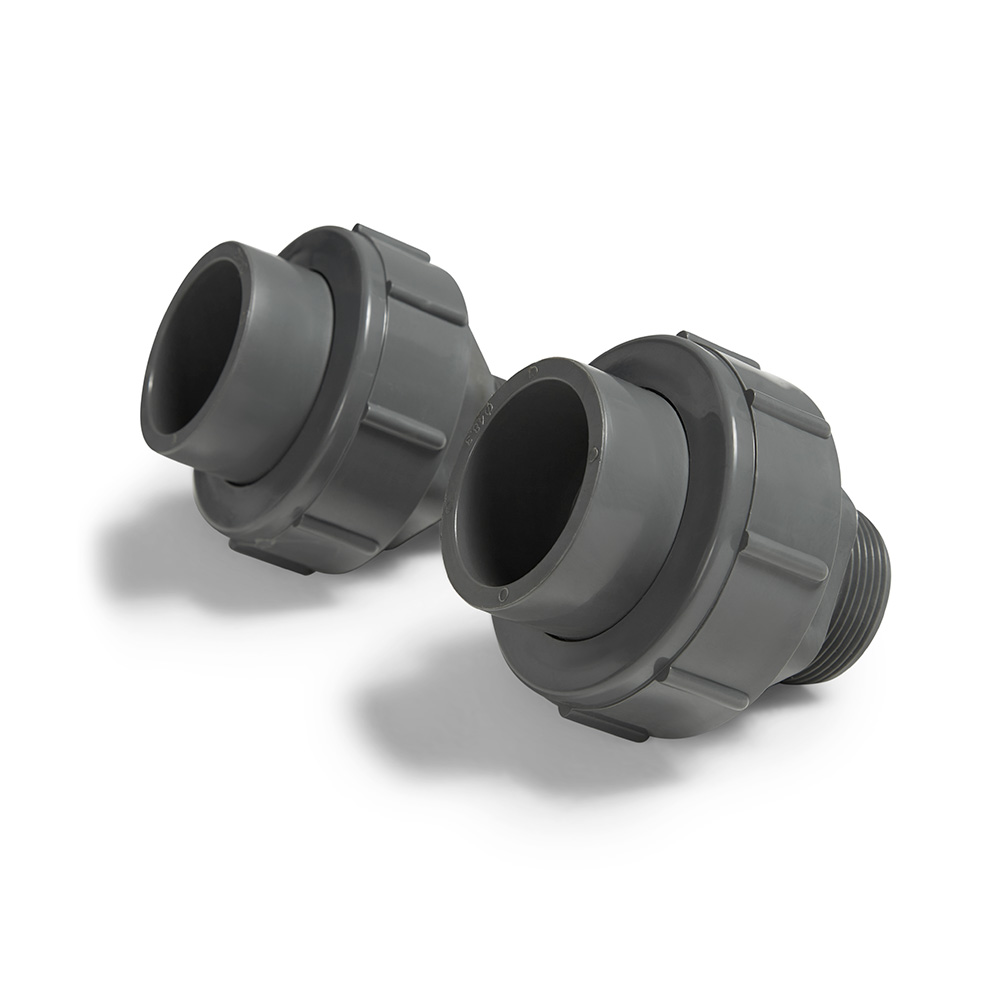

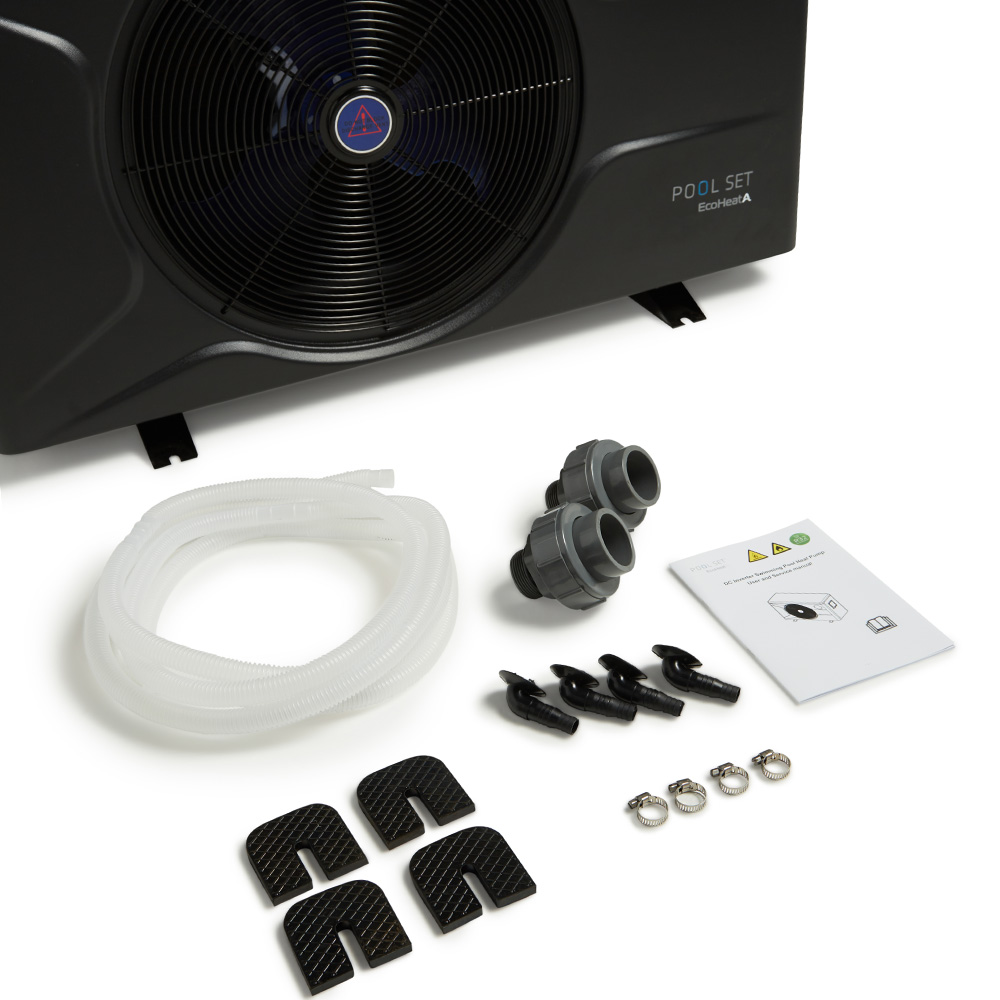

- Includes pipe unions
- 25 years warranty on heat exchanger
- 5 years warranty on compressor
- 2 years warranty on parts
- Heats pool and spa water effectively
- Super efficient inverter technology keeps running costs low
- Tough robust construction built for Australian conditions
- Easy to install with basic plumbing and a small amount of electrical work
- On the go control through wifi connection via the app
| Model | Eco-Heata 11kW | Eco-Heata 14kW | Eco-Heata 17kW | |
| Australian electrical approval number | SGS-220354-E | SGS-220354-E | SGS-220354-E | |
| Maximum recommended pool size (litres) | 50,000 | 60,000 | 75,000 | |
| Operating ambient temperature range °C | -7~45 | -7~45 | -7~45 | |
| Heating water range °C | 9~40 | 9~40 | 9~40 | |
| Cooling water range °C | 9~35 | 9~35 | 9~35 | |
| 26°C / 80% humidity | Heating capacity (kW) | 2.50~11.00 | 3.15~14.00 | 3.75~17.00 |
| Heating capacity (BTU/H) | 8,500~37,400 | 10,710~47,600 | 13,090~57,800 | |
| Electrical input power (kW) | 0.17~1.83 | 0.21~2.15 | 0.25~2.62 | |
| COP | 6.0~14.7 | 6.5~15.0 | 6.5~15.0 | |
| COP at 50% capacity | 11.0 | 10.5 | 11.0 | |
| 15°C / 70% humidity | Heating capacity (kW) | 1.65~8.50 | 2.40~10.7 | 2.65~13.0 |
| Heating capacity (BTU/H) | 5,610~28,900 | 8,160~36,380 | 9,010~44,200 | |
| Electrical input power (kW) | 0.23~1.77 | 0.34~2.12 | 0.36~2.58 | |
| COP | 4.8~7.2 | 5.0~7.1 | 5.0~7.4 | |
| COP at 50% capacity | 6.5 | 6.5 | 6.5 | |
| 35°C / 80% humidity | Cooling capacity (kW) | 6.0 | 7.2 | 8.6 |
| Rated input current (A) | 1.0~7.8 | 1.5~9.3 | 1.6~11.3 | |
| Maximum input current (A) | 8.5 | 11.7 | 16.2 | |
| Minimum fuse current (A) | 15.0 | 20.0 | 22.0 | |
| Maximum power input (kW) | 2.2 | 2.8 | 3.5 | |
| Advised water flow (m3/hour) | 3~5 | 4~6 | 6~9 | |
| Advised water flow (litres/minute) lpm | 50~85 | 65~100 | 100~150 | |
| Water pressure drop (max) kPa | 4 | 5 | 5 | |
| Min max operating water pressure (MPa) | 0.6 | 0.6 | 0.6 | |
| Min max water inlet pressure (MPa) | 1.2/4.4 | 1.2/4.4 | 1.2/4.4 | |
| Refrigerant consumption (g) | 450 | 550 | 750 | |
| Sound pressure (dBA) 1m | 40~50 | 42~51 | 43~52 | |
| Sound pressure of 50% capacity at 1m (dBA) | 41 | 43 | 44 | |
| Sound pressure at 10m (dBA) | 19~26 | 22~27 | 23~30 | |
| Power line connection | 15A plug & 3m cord | hard wired | hard wired | |
| Power line to connect to unit | 3 x 2.5mm | 3 x 2.5mm | 3 x 4.0mm | |
| Net weight (kg) | 64 | 77 | 80 | |
| Gross weight (kg) | 70 | 85 | 90 | |
| Dimensions L x D x H (mm) | 1000 X 396 X 640 | 1000 X 396 X 640 | 1125 x 416 x 765 | |
| Compressor | Panasonic | |||
| Heat exchanger | Spiral titanium tube in PVC | |||
| Refrigerant | R32 | |||
| Supply voltage | 220-240V | |||
| Phase | Single | |||
| Frequency | 50Hz | |||
| IP protection grade | IPX4 | |||
| Anti electric shock grade | Class I | |||
| Pipe size compatibility | Standard 40mm (DN40) - pipe outside dimension 48.5mm | |||
| Shell material | ABS | |||
| Controller | Embedded LCD control panel | |||
| WiFi control | Yes | |||
| Fan speed (rpm) | 400-900 | |||
| Display | LCD | |||
| Modes | Smart / Powerful / Silent / Heating / Cooling | |||
Click on one of the available documents below to download.
- Product Manual
